In an era where sustainable energy solutions are not just desirable but crucial, solar hot water systems stand out as a beacon of efficiency and environmental responsibility. These systems, which harness the sun's abundant energy to heat water for domestic and commercial use, represent a significant step towards reducing our carbon footprint while offering tangible benefits to users. This comprehensive guide delves into the intricate workings of solar hot water systems, exploring their components, processes, and the science behind this remarkable technology.
The Fundamentals of Solar Hot Water Systems

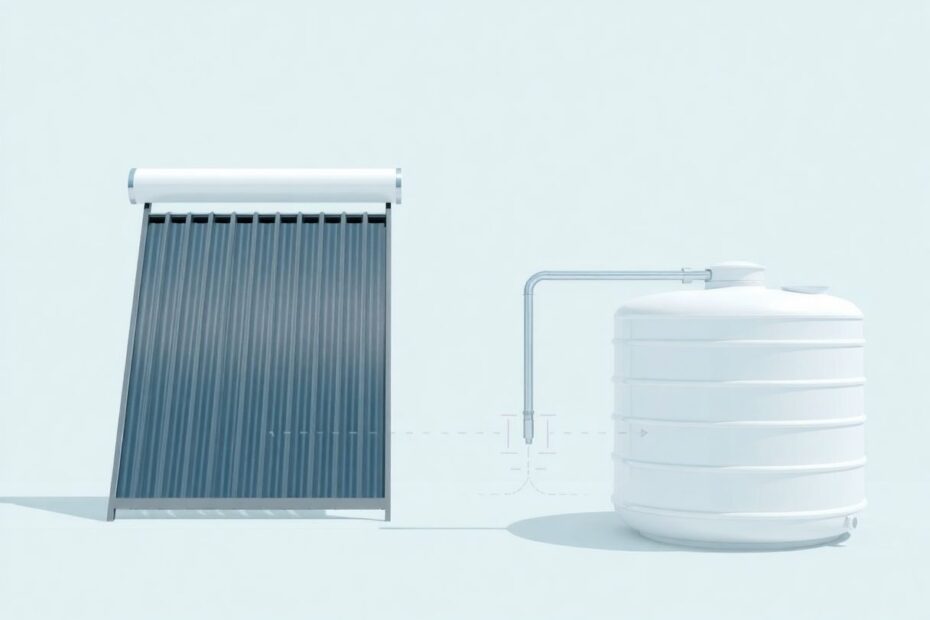

At its core, a solar hot water system operates on a deceptively simple principle: capturing the sun's energy to heat water. However, the ingenuity lies in the details of its implementation. These systems typically consist of solar collectors, a heat transfer fluid, a storage tank, and various control mechanisms that work in harmony to provide hot water efficiently.
Solar Collectors: The Heart of the System
Solar collectors are the primary components responsible for capturing solar energy. There are two main types of collectors commonly used in solar hot water systems:
- Flat-plate collectors
- Evacuated tube collectors
Flat-plate collectors, the more traditional option, consist of an insulated box containing a dark absorber plate covered by a glass or plastic sheet. Copper tubes run through this box, carrying the heat transfer fluid. These collectors are robust and effective, particularly in warmer climates.
Evacuated tube collectors, on the other hand, employ a series of glass tubes, each housing an absorber plate fused to a heat pipe. The space between the two layers of glass is evacuated, creating a vacuum that significantly reduces heat loss. This design makes evacuated tube collectors more efficient, especially in colder climates or areas with less direct sunlight.
Recent advancements in collector technology have led to the development of hybrid collectors that combine features of both types, offering improved performance across a wider range of conditions.
The Heat Transfer Process
Once the solar collectors absorb the sun's energy, the heat is transferred to a fluid circulating through the system. This fluid is typically either water or an antifreeze solution, depending on the climate and system design. In regions prone to freezing temperatures, antifreeze solutions like propylene glycol are preferred to prevent damage to the system.
The heated fluid then travels from the collectors to a storage tank, where it transfers its heat to the water intended for household use. In systems using antifreeze, this heat transfer occurs via a heat exchanger, ensuring that the antifreeze solution never mixes with the potable water supply.
Types of Solar Hot Water Systems
Solar hot water systems can be broadly categorized into two main types: active and passive systems. Each has its own set of advantages and is suited to different environments and needs.
Active Solar Hot Water Systems
Active systems use pumps and controllers to circulate the heat transfer fluid between the collectors and the storage tank. These systems can be further divided into direct and indirect systems:
Direct systems circulate household water directly through the collectors. While simple and efficient, these systems are only suitable for areas that don't experience freezing temperatures.
Indirect systems use a heat transfer fluid (often antifreeze) that circulates through a closed loop between the collectors and a heat exchanger in the storage tank. These systems are more versatile and can be used in a variety of climates.
Active systems offer greater control and efficiency but require more components and maintenance.
Passive Solar Hot Water Systems
Passive systems rely on natural convection to circulate water, eliminating the need for pumps and controllers. The two main types of passive systems are:
Integral collector-storage systems, which combine the collector and storage tank into a single unit. These are simple and cost-effective but are only suitable for mild climates.
Thermosyphon systems, which place the storage tank above the collectors, allowing hot water to rise naturally into the tank while cooler water sinks back to the collectors.
Passive systems are generally less expensive and more reliable due to fewer moving parts, but they're also less efficient and have limitations in terms of installation and climate suitability.
The Science Behind Solar Hot Water Efficiency
The efficiency of solar hot water systems is a testament to the advancements in thermal engineering and materials science. Several factors contribute to their impressive performance:
Absorption and Heat Transfer
The absorber plates in solar collectors are typically coated with spectrally selective materials that maximize absorption of solar radiation while minimizing heat loss through radiation. These coatings can absorb up to 95% of incoming solar energy across the visible and near-infrared spectrum.
The heat transfer fluid plays a crucial role in system efficiency. Water has a high specific heat capacity, making it an excellent medium for storing thermal energy. Antifreeze solutions, while necessary in colder climates, generally have lower heat capacities and may slightly reduce overall system efficiency.
Insulation and Heat Retention
Modern storage tanks are highly insulated to minimize heat loss. Advanced insulation materials, such as vacuum-insulated panels, can reduce heat loss to less than 0.5°C per day in a well-designed system. This insulation is crucial for maintaining water temperature overnight or during periods of low solar irradiance.
System Controls and Optimization
Smart controllers have revolutionized the operation of solar hot water systems. These devices use algorithms to optimize the timing and duration of fluid circulation, ensuring maximum heat capture and minimizing pump energy consumption. Some advanced systems even integrate weather forecasting data to predict system performance and adjust accordingly.
Performance Metrics and Real-World Efficiency
The efficiency of solar hot water systems is typically measured by their solar fraction – the portion of a home's hot water demand met by solar energy. In ideal conditions, modern systems can achieve solar fractions of 70-80% annually, with some high-performance systems reaching up to 90% in sunny climates.
A study published in the journal "Renewable Energy" in 2020 analyzed the performance of various solar hot water systems across different climates. The research found that in Mediterranean climates, flat-plate collectors could provide an average annual solar fraction of 75%, while evacuated tube collectors reached 82%. In colder, northern European climates, these figures dropped to 60% and 70% respectively, highlighting the impact of local conditions on system performance.
Environmental Impact and Energy Savings
The environmental benefits of solar hot water systems are substantial. According to the U.S. Department of Energy, a typical residential system can reduce water heating costs by 50-80%, depending on local fuel costs and solar resource availability. This translates to significant reductions in greenhouse gas emissions.
A life cycle assessment published in the "Journal of Cleaner Production" in 2019 found that a typical solar hot water system could offset its embodied energy (the energy required for its production and installation) within 2-3 years of operation. Over its 20+ year lifespan, such a system could prevent the emission of 20-30 tons of CO2, equivalent to planting over 500 trees.
Future Innovations and Integration
The future of solar hot water systems looks promising, with several exciting developments on the horizon:
Phase Change Materials (PCMs): Researchers are exploring the use of PCMs in storage tanks to increase heat retention capacity. These materials can store and release large amounts of energy while changing phase, potentially increasing system efficiency and reducing tank size.
Building-Integrated Solar Thermal (BIST): This concept integrates solar thermal collectors directly into building facades or roofing materials, improving aesthetics and potentially reducing installation costs.
Solar Cogeneration: Some companies are developing hybrid systems that generate both electricity and heat from the same collector, maximizing the utilization of roof space and solar energy capture.
AI and IoT Integration: The integration of artificial intelligence and Internet of Things (IoT) technology is enabling more sophisticated system controls, predictive maintenance, and seamless integration with smart home ecosystems.
Conclusion: A Bright Future for Solar Hot Water
Solar hot water systems represent a mature, reliable technology that continues to evolve and improve. By harnessing the abundant energy of the sun, these systems offer a practical solution to reduce energy costs and environmental impact. As we strive for more sustainable living practices, solar hot water systems stand as a shining example of how innovative engineering can turn a simple concept into a powerful tool for change.
Whether you're a homeowner looking to reduce your carbon footprint, an engineer fascinated by thermal dynamics, or simply someone curious about sustainable technologies, solar hot water systems offer a compelling glimpse into a future where our everyday needs are met through intelligent, environmentally conscious solutions. As research continues and technology advances, we can expect these systems to become even more efficient, affordable, and integrated into our daily lives, playing a crucial role in our transition to a more sustainable energy landscape.
