Illuminating Innovation: Understanding Hybrid Solar Lighting

In our quest for more sustainable and energy-efficient buildings, we're constantly seeking ways to harness the power of natural light. Enter hybrid solar lighting (HSL) – an innovative technology that brings the brilliance of sunlight deep into our indoor spaces. Let's explore this fascinating system that's changing the way we think about indoor illumination.

Navi.

What is Hybrid Solar Lighting?

Imagine walking into a room bathed in natural sunlight, even though you're far from any windows. That's the magic of hybrid solar lighting. At its core, HSL is an intelligent system that combines the best of both worlds – natural daylight and artificial lighting – to illuminate indoor spaces efficiently and beautifully.

Here's how it works in a nutshell:

Sunlight is collected on the roof using special mirrors.
This light is then channeled into the building through fiber-optic cables.
Inside, the natural light is distributed through special fixtures.
When sunlight isn't sufficient, the system automatically supplements with artificial light.

It's like having a series of virtual skylights throughout your building, bringing the outdoors in, even to spaces that have never seen natural light before.

The Journey of Light: From Sun to Room

Let's break down the HSL system into its key components and follow the fascinating journey of light from the sky to your indoor space.

1. The Solar Collector: Catching Rays

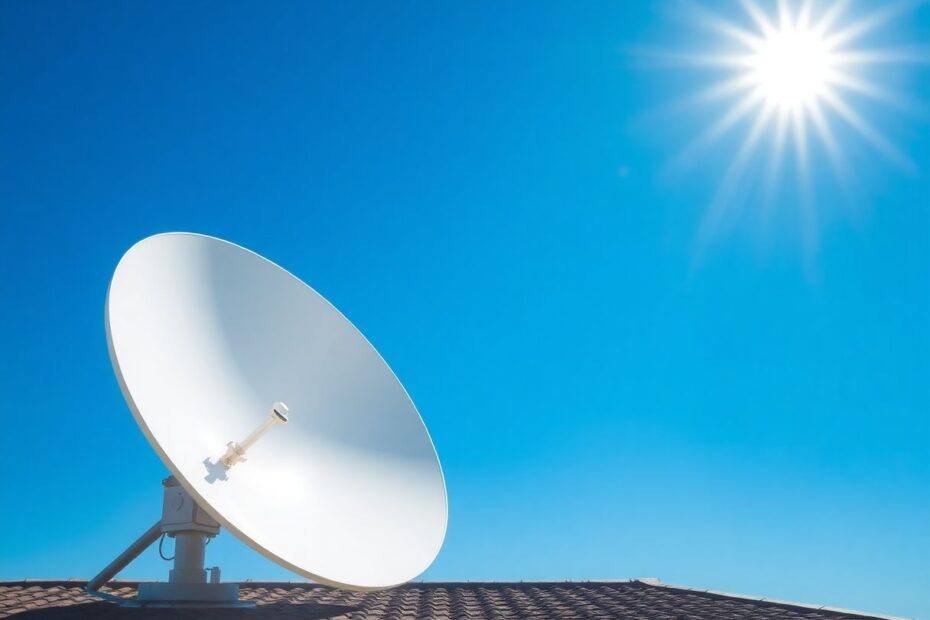

Picture a large, shiny dish on your roof, about 1 meter (3.3 feet) in diameter. This isn't for satellite TV – it's a solar collector, and it's the first stop for sunlight in our HSL system.

The collector uses a parabolic mirror, shaped like a satellite dish, to gather sunlight.
This mirror isn't static – it's mounted on a tracking system that follows the sun's path across the sky, maximizing light collection throughout the day.
Think of it as a sunflower for your building, always turning its face to the sun.

2. The Optical Magic: Concentrating Light

Once the sunlight hits our collector, some optical wizardry happens:

The large primary mirror reflects the sunlight onto a smaller secondary mirror.
This secondary mirror, about 20 cm (8 inches) wide, acts like a focusing lens in a magnifying glass.
It concentrates all that collected sunlight onto a small point – the entrance of our fiber-optic cable.

3. The Light Highway: Fiber-Optic Cables

Now, we need to get that concentrated sunlight from the roof into the building. Enter the fiber-optic cable – our light highway.

Unlike the hair-thin glass fibers used for internet, HSL uses thicker plastic (acrylic) fibers.
These fibers are about 2.5 cm (1 inch) wide and can be quite long – up to several meters.
Light travels down these fibers by bouncing off the inner walls, much like a ball bouncing down a long tube.

4. The Indoor Sun: Luminaires

At the end of our fiber-optic highway, we have special light fixtures called luminaires. These are where the magic happens inside your building:

Luminaires diffuse the incoming sunlight, spreading it evenly across the room.
They're designed to blend seamlessly with traditional lighting fixtures.
One solar collector can typically feed about ten of these luminaires.
Each luminaire can illuminate about 100 square meters (1000 square feet) of space.

5. The Smart Control: Light Sensors and Artificial Backup

To ensure consistent lighting throughout the day, HSL systems include some smart features:

Photosensors in the room constantly monitor light levels.
When natural light dims (due to clouds or as evening approaches), the system automatically boosts artificial lighting to compensate.
This creates a smooth transition, maintaining steady illumination from dawn to dusk.

The Bright History of Hybrid Solar Lighting

While HSL might seem like a futuristic concept, its roots stretch back centuries. Let's take a quick journey through time to understand how we arrived at today's HSL technology.

Ancient Inspirations

Roman Ingenuity: The ancient Romans used large south-facing windows in their bath houses to maximize natural light and heat.
Islamic Architecture: Medieval Islamic buildings often featured intricate screens and reflective pools to manipulate natural light.

The Age of Enlightenment

In the 18th century, Willem Jacob 's Gravesande developed the heliostat – a mirror that tracks the sun to reflect light consistently in one direction.
This invention laid the groundwork for future solar collecting technologies.

The Fiber-Optic Revolution

The 1950s saw the development of practical fiber-optic technology, initially for medical endoscopes and telecommunications.
In the 1970s, inventors began exploring how to use fiber optics to pipe sunlight into buildings.

The Birth of Modern HSL

In 1978, the Japanese company Himawari launched one of the first commercial solar lighting systems using fiber optics.
The mid-1990s saw the conception of hybrid solar lighting as we know it today.
Between 2000 and 2007, researchers at Oak Ridge National Laboratory in the USA developed and refined the HSL system.

Shedding Light on the Benefits

Now that we understand how HSL works, let's explore why it's generating so much excitement in the world of sustainable architecture and energy efficiency.

1. Energy Savings: Letting the Sun Do the Work

On sunny days, HSL can reduce artificial lighting needs by up to 50%.
This translates to significant energy savings, especially in large commercial spaces.
By reducing electricity consumption, HSL helps lower carbon emissions and combat climate change.

2. Quality of Light: Nature's Touch Indoors

Natural light has been shown to improve mood, productivity, and overall well-being.
HSL brings the full spectrum of sunlight indoors, providing light quality that artificial sources struggle to match.
In retail environments, studies have shown that customers prefer naturally lit spaces and may even spend more in them.

3. Heat Management: Cool Light

Unlike traditional skylights or windows, HSL delivers light without the heat.
The system filters out infrared (heat) and ultraviolet rays, providing illumination without increasing cooling costs.
This is particularly beneficial in warm climates or in buildings like grocery stores where temperature control is crucial.

4. Flexibility and Aesthetics

HSL can bring natural light to spaces that traditional windows or skylights can't reach, like deep interiors of large buildings.
The system integrates seamlessly with existing architecture and can be retrofitted into many buildings.
It eliminates the need for unsightly light fixtures in some spaces, creating cleaner, more open interiors.

5. Reduced Maintenance

With fewer artificial lights needed, there's less bulb replacement and maintenance required.
This can lead to additional cost savings over time, especially in large facilities.

Challenges and Considerations

While HSL offers numerous benefits, it's not without its challenges. Understanding these can help in determining if HSL is the right solution for a particular building or project.

1. Initial Cost

The upfront cost of installing an HSL system can be significant.
This includes the rooftop collectors, fiber-optic cabling, and specialized luminaires.
While energy savings can offset this over time, the initial investment may be a barrier for some.

2. Building Suitability

HSL works best in single-story buildings or on the top floors of multi-story structures.
The effectiveness decreases with distance from the roof due to light loss in the fiber-optic cables.
Buildings with complex roof structures or limited roof access may face installation challenges.

3. Climate Dependency

The system's efficiency is naturally dependent on available sunlight.
In regions with frequent overcast days, the benefits may be reduced.
However, even in these areas, HSL can still provide significant advantages on clear days.

4. Maintenance Considerations

While reducing some maintenance needs, HSL introduces new ones.
The rooftop collectors may require periodic cleaning and adjustment.
Specialized knowledge may be needed for system repairs or upgrades.

5. Integration with Building Systems

HSL needs to be carefully integrated with a building's overall lighting and energy management systems.
This may require updates to existing infrastructure or control systems.

Real-World Applications: Where HSL Shines

To truly appreciate the potential of hybrid solar lighting, let's explore some of the places where it's making a significant impact.

1. Commercial Retail Spaces

Imagine walking into a supermarket bathed in natural light, even in the center aisles.

Large retail spaces like supermarkets and department stores are ideal candidates for HSL.
These buildings often have large, open floor plans with limited access to windows.
HSL can provide natural light throughout the space, creating a more pleasant shopping environment.
The improved light quality can make products look more appealing, potentially boosting sales.

2. Office Buildings

Picture an office where every desk enjoys the benefits of natural daylight, regardless of proximity to windows.

HSL can bring natural light to interior offices and meeting rooms.
This can lead to improved employee mood, productivity, and overall well-being.
It's particularly beneficial in open-plan offices, where it can create a more uniform lighting environment.

3. Educational Institutions

Envision classrooms and libraries filled with natural light, even on lower floors or in interior rooms.

Schools and universities can use HSL to create better learning environments.
Natural light has been linked to improved student performance and reduced absenteeism.
It's especially valuable in spaces like libraries, where consistent, high-quality lighting is crucial.

4. Healthcare Facilities

Consider hospitals where patients in interior rooms can benefit from natural light cycles.

HSL can bring the healing benefits of natural light to more areas of hospitals and clinics.
It can help maintain patients' natural circadian rhythms, potentially aiding recovery.
In staff areas, it can help reduce fatigue among healthcare workers during long shifts.

5. Museums and Galleries

Think about art galleries where paintings are illuminated by carefully controlled natural light.

HSL allows museums to use natural light without the risks associated with direct sunlight exposure.
The system's ability to filter out harmful UV rays makes it safe for sensitive artifacts.
It can create a more dynamic viewing experience as the natural light subtly changes throughout the day.

6. Industrial Spaces

Imagine warehouses and factories where workers benefit from natural light, even in the heart of the building.

Large industrial spaces often rely heavily on artificial lighting.
HSL can significantly reduce energy costs in these high-consumption environments.
Improved lighting can enhance safety and worker comfort in industrial settings.

The Future is Bright: Innovations and Trends in HSL

As we look to the future, hybrid solar lighting continues to evolve. Here are some exciting developments and trends to watch:

1. Integration with Smart Building Systems

Future HSL systems may be more deeply integrated with overall building management systems.
This could allow for more precise control and optimization of lighting based on occupancy, time of day, and other factors.

2. Improved Efficiency

Ongoing research is focused on reducing light loss in fiber-optic cables, allowing HSL to be effective in taller buildings.
New materials and designs for collectors and luminaires could increase the overall efficiency of the system.

3. Combination with Solar Power

Some researchers are exploring ways to combine HSL with photovoltaic systems.
This could allow buildings to use sunlight for both lighting and electricity generation simultaneously.

4. Scalability for Residential Use

While currently more suited to commercial spaces, future innovations might make HSL more practical and cost-effective for home use.
This could revolutionize residential lighting, especially in areas with limited natural light access.

5. Bioengineered Light Pipes

Scientists are exploring the use of biological materials, inspired by light-channeling organisms, to create more efficient light-guiding systems.
This could lead to 'living' light pipes that are more efficient and potentially self-repairing.

Illuminating Thoughts: Conclusion

Hybrid solar lighting represents a brilliant fusion of age-old wisdom – the desire to bring natural light indoors – with cutting-edge technology. It's a system that not only promises significant energy savings but also has the potential to transform our indoor environments, making them more natural, pleasant, and in tune with our biological needs.

As we continue to grapple with the challenges of climate change and seek more sustainable ways to power and light our world, technologies like HSL offer a glimpse into a brighter, more efficient future. By harnessing the power of the sun in innovative ways, we're not just saving energy – we're creating spaces that are better for our planet and for the people who inhabit them.

The journey of hybrid solar lighting is far from over. As research continues and the technology evolves, we can look forward to even more efficient, versatile, and accessible systems. Who knows? In the not-so-distant future, the line between indoor and outdoor lighting might become so blurred that every room feels like it's basking in the glow of natural sunlight, regardless of its location in a building.

As we move forward, let's keep our eyes on the horizon, where the sun not only rises to light our world but also to power our innovations. The future of lighting is bright indeed, and it's being illuminated by the oldest light source we know – the sun itself.
