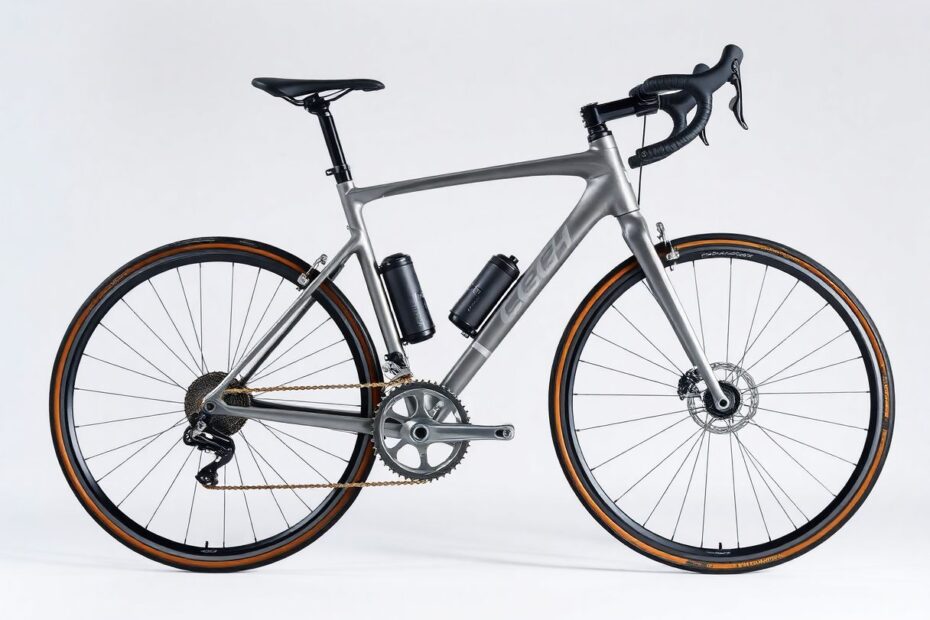

Introduction: The Bicycle as a Force Multiplier
Bicycles are marvels of engineering that have captivated humans for over two centuries. At their core, they are elegant machines that convert human power into efficient transportation. But beneath this simplicity lies a complex interplay of forces and mechanisms that work together to create an incredibly efficient mode of travel. This article delves deep into the physics and engineering behind how force is changed and managed on a bicycle, exploring everything from the basic gear system to cutting-edge materials and technologies.
The Fundamental Forces at Play
To understand how bicycles manipulate force, we must first grasp the basic forces involved in cycling. The primary force is the pedaling force generated by the rider's legs. This force is then converted into a propulsive force that moves the bike forward through the interaction of the wheels with the ground. Opposing these are various resistance forces: air resistance (drag), rolling resistance from the tires, and the ever-present force of gravity, which becomes particularly relevant when climbing hills.
The goal of most force-changing mechanisms on a bicycle is to optimize the relationship between these forces, allowing riders to pedal efficiently across a wide range of conditions. Let's explore these mechanisms in detail.
Gearing Systems: The Heart of Force Manipulation
The Physics of Gear Ratios
At the core of a bicycle's ability to change force is its gearing system. Gears work on the principle of mechanical advantage, allowing riders to trade force for speed or vice versa. This is achieved through different-sized gears creating various ratios between pedal rotations and wheel rotations.
For example, consider a bike with a front chainring of 50 teeth and a rear sprocket of 25 teeth. This creates a gear ratio of 2:1, meaning for every complete rotation of the pedals, the rear wheel rotates twice. This ratio directly affects both the force required to pedal and the speed at which the bike travels.
In lower gears (e.g., a 1:1 ratio), less force is needed to pedal, but the bike moves slower. This is ideal for climbing hills or starting from a stop. Conversely, in higher gears (e.g., a 3:1 ratio), more force is required to push the pedals, but each rotation propels the bike much further, allowing for higher speeds on flat terrain or descents.
Types of Gearing Systems
Modern bicycles employ various gearing systems, each with its own advantages:
Derailleur Systems: The most common type, using a chain that moves between different-sized sprockets. These systems offer a wide range of gear ratios but require regular maintenance.
Hub Gears: Enclosed within the rear wheel hub, these systems offer a cleaner look and require less maintenance. They're ideal for urban bikes but typically offer fewer gear options than derailleur systems.
Single-Speed: As the name suggests, these bikes have a fixed ratio between pedal and wheel rotation. While limiting in terms of gear options, they offer simplicity and low maintenance.
Beyond Gears: Other Mechanisms of Force Change
While gears are the most obvious way bicycles change force, several other factors play crucial roles:
Crank Length: The Lever Principle
The length of the crank arms (connecting pedals to the chainring) affects force application through the principle of leverage. Longer cranks provide more leverage, requiring less force but a larger range of motion. Shorter cranks require more force but allow for a higher cadence (pedaling speed). Most bikes come with cranks between 165mm and 175mm, but custom lengths are available for specific needs or rider sizes.
Wheel Size Dynamics
Wheel size significantly impacts how force translates into motion. Larger wheels roll over obstacles more easily and maintain momentum better but require more force to accelerate. Smaller wheels, on the other hand, accelerate more quickly and offer greater maneuverability but may struggle more with obstacles. This is why you'll see large wheels on road bikes designed for speed and smaller wheels on BMX bikes built for quick acceleration and tricks.
Tire Pressure and Contact Patch
Tire pressure plays a subtle but important role in force management. Higher pressure reduces rolling resistance but decreases traction, while lower pressure increases rolling resistance but improves grip and comfort. The tire's contact patch (the area touching the ground) changes with pressure, affecting force distribution. A larger contact patch from lower pressure distributes force over a greater area, improving traction but increasing resistance.
Frame Geometry and Force Transfer
The design of the bicycle frame itself influences how efficiently force is transferred from the rider to the wheels. Key aspects include:
- Chainstay length: Shorter chainstays can make the bike feel more responsive but may reduce stability.
- Bottom bracket height: A lower bottom bracket lowers the center of gravity, affecting stability and cornering.
- Head tube angle: A steeper angle makes steering more responsive, while a slacker angle increases stability at high speeds.
Each of these elements is carefully considered by frame designers to create bikes optimized for different purposes, from nimble racing machines to stable long-distance tourers.
The Aerodynamic Factor
As speeds increase, air resistance becomes the dominant force a cyclist must overcome. How a rider positions their body on the bike dramatically affects this force. An upright position is comfortable but creates significant drag, while a dropped position on racing handlebars can reduce a rider's frontal area by up to 30%, significantly reducing the force needed to maintain high speeds.
Racing cyclists often use specialized aero bars to achieve an even more streamlined position. Wind tunnel tests have shown that a good aerodynamic position can save up to 40 watts of power at 40 km/h compared to an upright position – a significant difference in racing scenarios.
Suspension Systems: Managing Force from the Terrain
Many mountain bikes and some road bikes incorporate suspension systems to absorb forces from uneven terrain. These systems not only improve comfort but also help maintain traction, which is crucial for efficient force transfer to the ground.
- Front suspension (forks) absorbs impacts on the front wheel, reducing fatigue and improving control.
- Rear suspension helps maintain traction over rough ground, allowing more consistent power application.
While suspension can make riding more efficient on rough terrain, it can also absorb some of the rider's pedaling force, potentially reducing efficiency on smooth surfaces. This has led to the development of sophisticated lockout mechanisms that can firm up the suspension for more efficient riding on smoother terrain.
Pedal Systems and Force Application
The interface between the rider's foot and the pedal is crucial for efficient force transfer. Flat pedals allow for quick foot removal but don't enable pulling up on the pedal. Clipless pedals, which despite their name actually clip to special shoes, lock the foot to the pedal. This allows for force application throughout the entire pedal stroke.
Studies have shown that clipless pedals can increase pedaling efficiency by up to 10% by enabling the rider to apply force on both the down and up strokes. This is particularly beneficial in high-power situations like sprinting or climbing.
Braking Systems and Force Modulation
While primarily used for slowing or stopping, brakes also play a role in how force is managed on a bike. The two main types are:
- Rim brakes: Apply force directly to the wheel rim. They're lightweight but can be less effective in wet conditions.
- Disc brakes: Apply force to a rotor attached to the wheel hub. They offer better modulation and performance in wet conditions.
The ability to precisely modulate braking force is crucial for maintaining control and momentum, particularly in technical riding situations.
Materials Science in Cycling
The materials used in bicycle construction greatly influence how forces are transmitted and absorbed. Each material has unique properties that affect the bike's performance:
- Steel: Offers a compliant ride, absorbing some road vibrations. It's durable but relatively heavy.
- Aluminum: Stiff and lightweight, it transmits more road feel but can be harsh on rough surfaces.
- Carbon fiber: Can be tuned to be stiff in some areas and compliant in others. It's lightweight but more expensive.
- Titanium: Offers a balance of compliance and stiffness with excellent durability, but at a high cost.
The choice of material affects not only the bike's weight but also how it responds to the forces applied by the rider and the terrain. For example, carbon fiber's ability to be shaped into aerodynamic forms while maintaining stiffness where needed has revolutionized high-performance cycling.
The Human Element: Biomechanics and Force Production
The human body's ability to produce force on the bike is a complex interplay of muscles, joints, and nervous system coordination. Understanding these factors helps cyclists optimize their position and technique for maximum force production:
- Muscle fiber types: Fast-twitch fibers are crucial for sprinting and short, intense efforts, while slow-twitch fibers are essential for endurance riding.
- Joint angles: Optimal angles for force production vary by individual and riding style. Bike fitting has become a science in itself, using 3D motion capture and pressure mapping to optimize rider position for both power output and comfort.
- Neural adaptation: Training improves the nervous system's ability to recruit muscles efficiently. This is why experienced cyclists often appear to be pedaling more smoothly and efficiently than novices.
Cutting-Edge Technologies in Force Management
Modern bicycles often incorporate advanced technologies to help manage and optimize force:
- Power meters: These devices measure the actual force applied by the rider, typically through strain gauges in the crank, pedals, or hub. They provide real-time data on power output, helping riders pace their efforts and train more effectively.
- Electronic shifting: Systems like Shimano Di2 and SRAM eTap allow for precise, effort-saving gear changes. They can be programmed to shift automatically based on speed or cadence, optimizing gear selection for efficiency.
- Smart trainers: Used for indoor training, these devices can simulate different forces and terrains, allowing riders to practice force management in a controlled environment.
Conclusion: The Bicycle as a Testament to Engineering and Physics
The bicycle, in its apparent simplicity, is a remarkable demonstration of how basic physical principles can be harnessed to create an incredibly efficient machine. From the mechanical advantage provided by gears to the aerodynamic considerations of rider position, every aspect of a bicycle's design is an exercise in optimizing force application and management.
As our understanding of physics, materials science, and human biomechanics continues to advance, so too does the bicycle. Today's high-end bicycles are marvels of engineering, with carbon fiber frames shaped by computational fluid dynamics, electronic shifting systems, and power meters providing real-time force output data.
Yet, at its heart, the bicycle remains true to its original purpose: to efficiently convert human power into motion. Whether you're a casual rider enjoying a weekend cruise or a professional athlete pushing the limits of human performance, the principles discussed in this article are at work, helping you manage and optimize the forces involved in cycling.
As we look to the future, emerging technologies like advanced materials, artificial intelligence for real-time bike adjustments, and even more sophisticated aerodynamic designs promise to push the boundaries of what's possible on two wheels. The bicycle, over 200 years old, continues to evolve, remaining a testament to human ingenuity and our endless quest to move more efficiently through our world.
