In our modern world of digital streaming and compact audio files, it's easy to take recorded music for granted. But the ability to capture and reproduce sound was once considered nothing short of magical. At the heart of this audio revolution was the phonograph – an ingenious device that translated sound waves into physical grooves and back again. Let's dive deep into the captivating mechanics and physics behind this groundbreaking technology that changed how we experience music forever.
The Birth of Recorded Sound: Edison's Eureka Moment
Our journey begins in the late 19th century with the brilliant mind of Thomas Edison. In 1877, Edison unveiled his phonograph, the world's first device capable of both recording and playing back sound. This invention worked on a deceptively simple yet revolutionary principle: translating sound waves into physical indentations on a medium, then using those indentations to recreate the original sound.
Edison's early phonograph used a cylinder wrapped in tinfoil as its recording medium. As he spoke into a large horn, a diaphragm connected to a stylus vibrated in response to the sound waves. This vibration caused the stylus to etch a pattern into the rotating cylinder. To play back the recording, the process was reversed – the stylus followed the grooves, causing the diaphragm to vibrate and reproduce the sound.
Edison himself described the moment of discovery in his laboratory notes:
"I was never so taken aback in my life. Everybody was astonished. I was always afraid of things that worked the first time."
This breakthrough opened up a world of possibilities, laying the foundation for the entire recorded music industry we know today.
From Cylinders to Discs: The Evolution of the Record
While Edison's cylinder phonograph was revolutionary, it had limitations in terms of playback time and mass production. Enter Emile Berliner, who in 1887 introduced the gramophone – a device that used flat discs instead of cylinders. This innovation paved the way for easier mass production of records and eventually became the standard format for phonographs.
The transition from cylinders to discs was a crucial step in the evolution of recorded sound. Disc records could be stamped from a single master, allowing for much more efficient mass production. Additionally, discs were easier to store and handle than the more fragile cylinders.

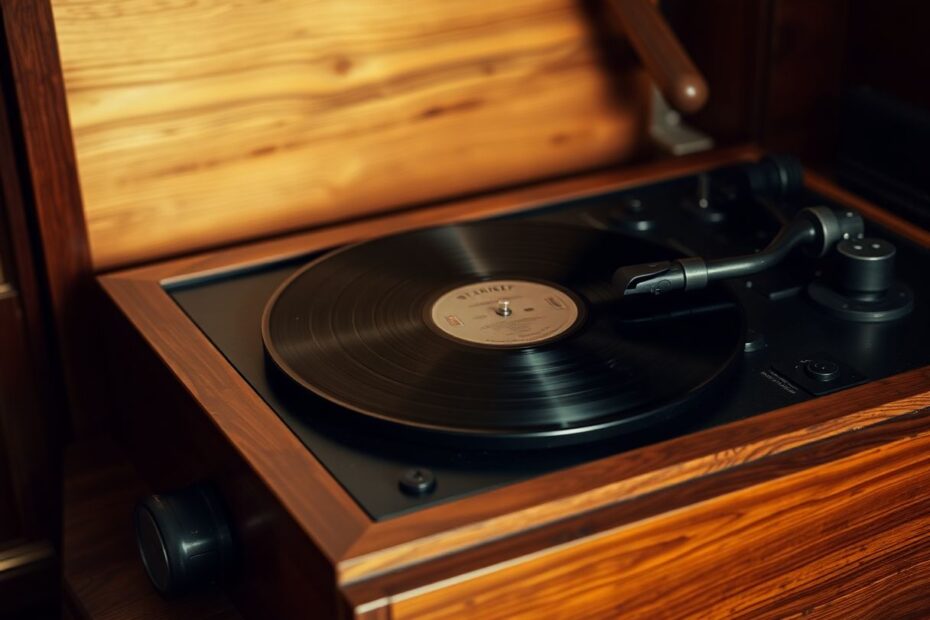

The Anatomy of a Modern Phonograph
Now that we've explored the historical context, let's break down the key components of a typical record player and examine how they work together to reproduce sound:
The Turntable: This rotating platform supports and spins the record. It's driven by an electric motor, either directly or via a belt system. Precision is key here – even tiny speed fluctuations can affect pitch and tempo. High-end turntables often use sophisticated speed control systems to maintain rock-solid rotation rates.
The Record: A vinyl disc with spiral grooves etched into its surface. These microscopic grooves contain the encoded sound information. The average LP (long-playing) record contains about 1,500 feet of groove!
The Tonearm: A pivoting arm that holds the cartridge and stylus, allowing them to track the record's grooves. The tonearm must be precisely balanced to apply the correct amount of downward force (usually between 1.5 to 2.5 grams) while minimizing lateral forces that can cause distortion.
The Cartridge and Stylus: The stylus (needle) rides in the record's groove, picking up vibrations. The cartridge converts these mechanical vibrations into electrical signals. This process relies on either a magnetic or piezoelectric system to generate the tiny voltages that represent the audio signal.
The Preamp: Amplifies the weak electrical signal from the cartridge (typically less than 1 millivolt) to a level that can be processed by an amplifier (around 200-400 millivolts). The preamp also applies RIAA equalization to correct for deliberate frequency adjustments made during the record mastering process.
The Amplifier and Speakers: Convert the electrical signals back into audible sound waves, completing the journey from groove to sound.
The Physics of Groove Reading: A Microscopic Marvel
The heart of a phonograph's operation lies in how it translates the physical grooves on a record into sound. This process is a testament to the ingenuity of early audio engineers and the remarkable properties of materials and vibration. Let's explore this process in more detail:
Setting the Stage:
When you place a record on the turntable and start the motor, the disc begins to spin at a precise rate – typically 33 1/3 revolutions per minute for LPs or 45 rpm for singles. This constant speed is crucial for accurate pitch reproduction.Dropping the Needle:
As you carefully lower the tonearm, the stylus – usually made of diamond or sapphire and shaped to a fine point – makes contact with the outer edge of the record. The stylus tip typically measures about 0.7 mil (0.0007 inches) in diameter, small enough to fit snugly in the record's microscopic groove.Reading the Grooves:
As the record spins, the stylus traces the undulating groove. These grooves are incredibly tiny – often less than 0.001 inches wide. The groove's walls contain microscopic variations that correspond to the original sound waves. In essence, the groove acts as a "mechanical waveform" of the recorded sound.Vibration to Electricity:
As the stylus follows these variations, it vibrates in a pattern that mimics the original sound waves. These vibrations are transmitted up the cantilever to the cartridge body. Inside the cartridge, a transducer system converts these mechanical vibrations into electrical signals.There are two main types of cartridges:
- Moving Magnet (MM): A tiny magnet attached to the cantilever moves within a fixed coil, inducing a small electrical current.
- Moving Coil (MC): The coil moves within a fixed magnet, generally offering higher precision but at a higher cost.
Amplification and Playback:
The electrical signals generated by the cartridge are incredibly weak – typically measured in microvolts. The preamp boosts this signal to a usable level and applies the necessary equalization. Finally, the amplified signal is sent to speakers or headphones, which convert it back into sound waves we can hear.
The Marvels of Stereo Sound: Two Channels in One Groove
Modern records typically contain stereo sound, meaning they reproduce two separate channels of audio (left and right). This is achieved through an ingenious groove design that packs twice the information into a single physical space:
- The groove has two walls, each at a 45-degree angle to the record surface.
- One wall contains information for the left channel, the other for the right.
- The stylus moves both horizontally and vertically to read both channels simultaneously.
This clever design, introduced in the 1950s, allowed for true stereo playback while maintaining backwards compatibility with mono equipment. The physics behind this are fascinating – the stylus essentially performs a vector decomposition of the groove modulation in real-time, separating the left and right channel information.
The Science of Sound Fidelity: Overcoming Physical Limitations
Achieving high-fidelity sound reproduction from a purely mechanical system is no small feat. Engineers had to overcome numerous challenges:
Frequency Response: The phonograph system needs to accurately reproduce the entire range of human hearing, typically considered to be 20 Hz to 20 kHz. This requires careful design of the stylus, cartridge, and tonearm to avoid resonances or roll-offs at the frequency extremes.
Dynamic Range: The difference between the quietest and loudest sounds a system can reproduce. Vinyl has a theoretical dynamic range of about 70 dB, which is less than digital formats but still impressive for an analog medium.
Wow and Flutter: Speed variations that can affect pitch and tempo. High-quality turntables use precision motors and heavy platters to minimize these effects.
Tracking Force: The stylus must maintain constant contact with the groove walls without causing excessive wear. Too little force and the stylus can lose contact, causing skipping. Too much force accelerates record wear.
Cartridge Alignment: The stylus must be precisely aligned to track the groove accurately. Even tiny deviations can introduce distortion and uneven wear.
The Enduring Appeal of Vinyl in a Digital World
Despite the dominance of digital audio, vinyl records and phonographs have experienced a remarkable resurgence in recent years. Many audiophiles and music enthusiasts argue that the analog nature of vinyl provides a warmer, more natural sound than digital formats. While this is partly subjective, there are some scientific factors that contribute to vinyl's unique sound:
Analog vs. Digital: Vinyl is a true analog medium, capturing a continuous waveform. Digital audio, in contrast, samples the waveform at discrete intervals (typically 44,100 times per second for CD-quality audio). While modern digital systems can accurately reproduce frequencies well beyond human hearing, some argue that the continuous nature of analog provides a more "natural" sound.
Harmonic Distortion: Vinyl introduces small amounts of even-order harmonic distortion, which some listeners find pleasing to the ear. This can add a perceived "warmth" to the sound.
Dynamic Range Compression: Modern digital recordings often employ heavy dynamic range compression to sound louder. Vinyl's physical limitations have historically encouraged more dynamic mixes, which many listeners prefer.
The Ritual and Psychology: The act of carefully handling a record, placing it on the turntable, and lowering the needle creates a more engaged listening experience. This psychological factor shouldn't be underestimated in how we perceive sound quality.
Caring for Your Phonograph and Records: Preserving Audio History
To get the best performance and longevity from a phonograph system, proper care and maintenance are essential:
- Keep records clean using specialized brushes and cleaning solutions to remove dust and debris from the grooves.
- Store records vertically to prevent warping, and use inner sleeves to protect against scratches.
- Regularly clean the stylus with a soft brush to remove built-up debris that can affect sound quality and damage records.
- Ensure proper cartridge alignment and tracking force using alignment protractors and stylus pressure gauges.
- Keep the turntable level and isolated from external vibrations using specialized stands or isolation platforms.
The Future of an Analog Icon
As we continue to push the boundaries of digital audio technology, the phonograph stands as a testament to the ingenuity of early sound pioneers. Its continued popularity demonstrates the enduring appeal of this elegant, mechanical approach to sound reproduction.
Looking ahead, we're seeing interesting developments that bridge the gap between analog and digital:
- High-resolution digital-to-analog converters that aim to recreate the smoothness of analog sound.
- Advanced stylus and cartridge designs that push the boundaries of what's possible with mechanical playback.
- Hybrid systems that combine the best of both worlds, such as turntables with built-in analog-to-digital converters for archiving vinyl collections.
In conclusion, the phonograph represents a beautiful marriage of physics, engineering, and artistry. Its ability to capture the nuances of sound in physical form and faithfully reproduce them continues to captivate music lovers more than a century after its invention. Whether you're a dedicated audiophile, a casual listener, or simply curious about the history of sound technology, understanding how a phonograph works offers a deeper appreciation for the music we enjoy every day. It's a reminder that sometimes, the most enduring technologies are those that connect us viscerally to the physical world, even as we race towards an increasingly digital future.
