In the realm of electronic displays, few technologies capture the imagination quite like nixie tubes. These glowing numerical indicators, popular in the mid-20th century, have experienced a remarkable resurgence in recent years. With their unique blend of vintage aesthetics and futuristic glow, nixie tubes continue to fascinate electronics enthusiasts and designers alike. This article delves deep into the world of nixie tubes, exploring their history, inner workings, and enduring appeal.
What Are Nixie Tubes?

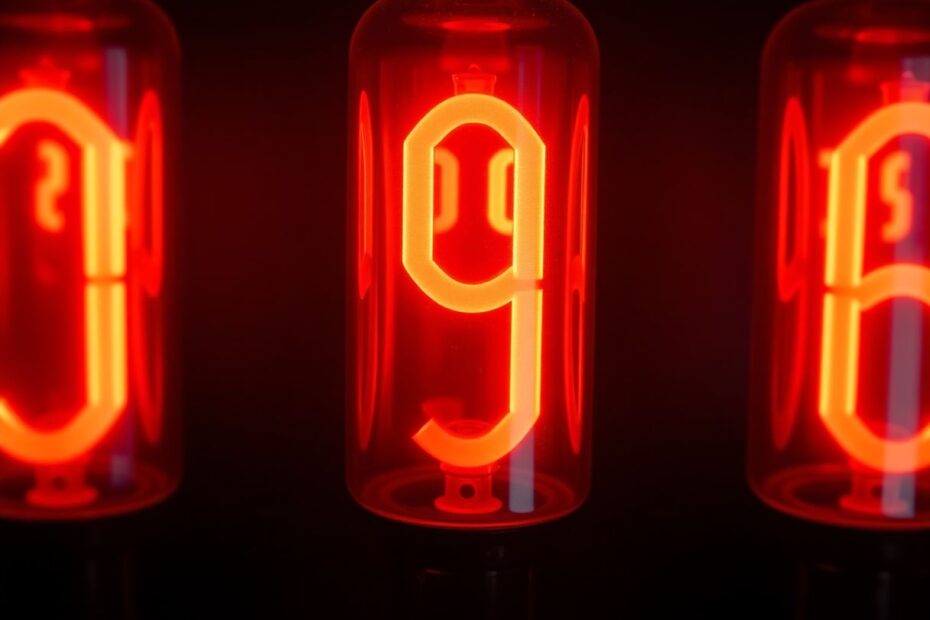

Nixie tubes, short for "Numeric Indicator eXperimental No. 1," are cold-cathode display devices used for showcasing numerals or other information. Unlike modern LED or LCD displays, nixie tubes contain actual physical digits made of bent metal wire, typically arranged in a stack inside a sealed glass tube filled with neon gas and trace amounts of other gases.
The key characteristics that define nixie tubes include:
- A glass bulb filled primarily with neon, along with small amounts of mercury and argon
- A stack of wire-formed digits (usually 0-9)
- A distinctive orange-red glow
- Cold-cathode technology
- High voltage operation, typically requiring 170-180 volts
These unique properties give nixie tubes their characteristic appearance and contribute to their enduring appeal among enthusiasts and collectors.
The Science Behind the Glow: How Nixie Tubes Work
To truly appreciate nixie tubes, it's essential to understand the fascinating physics and electronics principles that drive their operation. Let's break down the process step-by-step:
Structure and Components
Each nixie tube consists of several key components:
- A glass envelope sealed with a mixture of gases
- Ten cathodes, each shaped like a digit from 0 to 9
- A single anode, typically in the form of a mesh or grid surrounding the cathodes
- A base with pins for electrical connections
The Ionization Process
When a high voltage (around 170-180 volts) is applied between the anode and one of the cathode digits, it initiates a process called ionization. This occurs because the electric field is strong enough to strip electrons from the gas atoms inside the tube, creating positively charged ions and free electrons.
Electron Flow and Sputtering
The newly created electrons are attracted to the positively charged anode mesh, while the positive ions move towards the negatively charged cathode digit. As these ions collide with the cathode, they can knock off metal atoms in a process known as sputtering. This sputtering process is crucial for maintaining the tube's longevity, as it helps distribute the wear across the cathode surface.
Light Emission and Glow Discharge
The magic of nixie tubes lies in the interactions between electrons, ions, gas atoms, and sputtered metal atoms. As these particles collide, they become excited to higher energy states. When they return to their ground state, they emit photons of light, creating the characteristic glow.
This process results in a phenomenon called glow discharge, where a glowing "sheath" forms around the selected cathode digit, making it appear illuminated. The unique glow discharge effect is what gives nixie tubes their distinctive appearance, with the digit seeming to float in a hazy orange-red mist.
Selective Display
By applying voltage to different cathode digits, you can selectively illuminate different numbers. This allows nixie tubes to display changing information, making them suitable for various applications such as clocks, voltmeters, and frequency counters.
The Unique Glow Discharge Phenomenon
One of the most captivating aspects of nixie tubes is the glow discharge phenomenon. Unlike incandescent bulbs where the filament itself glows, the light in a nixie tube appears as a glowing "ghost" just outside the metal cathode. This occurs due to several factors:
Aston Dark Space
Immediately adjacent to the cathode, there's a thin, dark region known as the Aston dark space. In this area, electrons don't have enough energy to excite gas atoms, resulting in a lack of visible light emission.
Cathode Glow
Beyond the Aston dark space, electrons gain sufficient energy to excite gas atoms, creating the visible glow that we associate with nixie tubes. This glow is most intense near the cathode surface and gradually fades as you move further away.
Complex Plasma Interactions
The interplay of electrons, ions, and neutral atoms in the low-pressure gas creates a complex series of light and dark regions. These include the negative glow, Faraday dark space, positive column, and anode glow. While not all of these regions are easily visible in a typical nixie tube, they contribute to the overall visual effect and the tube's operating characteristics.
This unique lighting effect is part of what makes nixie tubes so visually appealing and distinguishes them from other types of displays.
Advantages and Disadvantages of Nixie Tubes
Like any technology, nixie tubes have their strengths and weaknesses. Understanding these can help appreciate why they were eventually superseded by newer technologies, as well as why they continue to be valued by enthusiasts.
Advantages
Bright, easily readable display: The glowing digits of nixie tubes are highly visible, even in bright ambient light conditions.
Aesthetically pleasing: The rounded, three-dimensional digits and warm orange glow create a unique and attractive visual effect.
Visible from a distance: Large nixie tubes can be read from up to 45 meters away, making them suitable for public displays.
Long lifespan: Well-made nixie tubes can last between 20,000 to 100,000 hours of operation.
Wide operating temperature range: Nixie tubes can function in extreme temperatures, from -65°C to 70°C, making them suitable for harsh environments.
Durability: They can withstand shocks up to 55G, making them robust for certain applications.
Graceful degradation: If individual digits fail, the tube can continue to function partially, unlike many modern displays where a single faulty element can render the entire display unusable.
Disadvantages
High voltage requirement: The need for 170-180 volts makes them inconvenient for modern low-voltage circuits and poses safety concerns.
High power consumption: Compared to modern LED or LCD displays, nixie tubes consume significantly more power.
Large size: Nixie tubes are bulky compared to modern display technologies, limiting their use in compact devices.
Limited viewing angle: The stacked arrangement of digits means that the display can be difficult to read from certain angles.
Contains mercury: The presence of mercury in the gas mixture poses potential health and environmental hazards if the tube is broken.
Obsolete technology: As nixie tubes are no longer in mainstream production, sourcing them for new projects can be challenging and expensive.
Historical Context: The Rise and Fall of Nixie Tubes
To fully appreciate nixie tubes, it's important to understand their historical context and how they fit into the broader evolution of electronic displays.
Early Development
The concept of gas-discharge numeric displays dates back to the 1930s when Hans Paul Boswau patented the basic idea. However, it wasn't until the 1950s that the technology we now know as nixie tubes began to take shape.
The Burroughs Era
In the 1950s, the Burroughs Corporation played a pivotal role in developing and marketing nixie tubes. Initially sold under the "Haydu" and "HB" brand names, these early nixie tubes quickly gained popularity in the electronics industry.
In 1956, Burroughs trademarked the name "nixie," which is believed to be derived from "NIX1" – standing for "Numeric Indicator eXperimental #1." This naming convention reflects the experimental nature of the technology at the time.
Peak Popularity
Throughout the 1950s and 1960s, nixie tubes became the display technology of choice for a wide range of electronic devices. They were particularly popular in test equipment, early computers, and other applications requiring numeric displays.
Some notable uses of nixie tubes during this period include:
- The UNIVAC 1 computer, one of the first commercially available computers, used nixie tubes in its console
- The Apollo Guidance Computer, which helped navigate the Apollo missions to the moon, used nixie tubes in its DSKY (Display and Keyboard) interface
- Various scientific instruments, such as frequency counters and voltmeters, relied on nixie tubes for their displays
The Decline
The 1970s marked the beginning of the end for nixie tubes as a mainstream technology. The rise of LED (Light Emitting Diode) displays offered several advantages over nixie tubes:
- Lower power consumption
- Lower voltage requirements
- Smaller size
- Easier integration with solid-state electronics
As LED technology improved and costs decreased, nixie tubes were gradually phased out of most applications. By the 1980s, they were largely considered obsolete for new designs.
The Resurgence
Interestingly, the story of nixie tubes doesn't end with their obsolescence. From the 1990s to the present day, nixie tubes have experienced a remarkable resurgence in popularity among hobbyists, artists, and enthusiasts of retro technology.
This revival can be attributed to several factors:
- Nostalgia for vintage electronics
- Appreciation for the unique aesthetic of nixie tubes
- The maker movement and DIY electronics culture
- Interest in steampunk and retro-futuristic design
As a result, nixie tubes have found new life in custom-built clocks, art installations, and specialty displays, becoming prized collectors' items in the process.
Modern Applications and the Nixie Tube Revival
Despite being technically obsolete, nixie tubes have carved out a niche in the modern world, finding applications that capitalize on their unique characteristics and retro appeal.
Retro Clocks
One of the most popular modern uses for nixie tubes is in custom-built clocks. Enthusiasts and manufacturers have created a wide range of nixie tube clocks, from simple desktop models to elaborate wall-mounted designs. These clocks often combine the vintage glow of nixie tubes with modern timekeeping electronics, creating a perfect blend of old and new.
Art Installations
Artists have embraced nixie tubes as a medium for creating dynamic, glowing sculptures and interactive displays. The warm, orange glow and the visible structure of the tubes lend themselves well to artistic expression, allowing creators to play with themes of technology, time, and information display.
Steampunk Designs
The aesthetic of nixie tubes aligns perfectly with the steampunk genre, which combines Victorian-era design elements with futuristic technology. Nixie tubes frequently appear in steampunk-inspired gadgets, costumes, and props, adding an authentic touch of retro-futurism.
Specialty Instruments
While rare, some high-end audio equipment still uses nixie tubes for displays. This is often more for aesthetic reasons than practical ones, appealing to audiophiles who appreciate both vintage technology and high-quality sound.
Wearable Tech
In a testament to human ingenuity, some inventors have even created nixie tube wristwatches. While these are more novelty items than practical timepieces (given the size and power requirements of nixie tubes), they showcase the enduring fascination with this technology.
Educational Tools
Nixie tubes serve as excellent educational tools for teaching principles of electronics, plasma physics, and the history of display technology. Their visible operation makes complex concepts more tangible for students.
DIY Nixie Projects: Getting Started
For those interested in working with nixie tubes, there are several important considerations to keep in mind:
Safety First
The high voltages required for nixie tubes (170-180 volts) pose significant safety risks. Always exercise extreme caution when working with these voltages, use proper insulation, and never work on live circuits.
Power Supply
You'll need a power supply capable of providing the necessary high voltage. This can be achieved through:
- Purpose-built nixie power supplies
- Voltage multiplier circuits
- Repurposed CRT television flyback transformers
Driving Circuits
Controlling nixie tubes requires specialized driver circuits. Options include:
- Dedicated nixie driver ICs (such as the K155ID1)
- Discrete transistor circuits
- High-voltage shift registers
Tube Selection
Different nixie tubes have varying sizes, shapes, and pin configurations. Popular models include:
- IN-14 (small, side-view)
- IN-18 (large, front-view)
- Z573M (extra-large, front-view)
Research the specifications of different tubes to find the best fit for your project.
Sourcing Components
While no longer in production, nixie tubes can still be found from:
- Specialty electronics suppliers
- Online marketplaces (eBay, Etsy)
- Salvaged from old equipment
Be prepared for potentially high prices, especially for rare or popular tube types.
Design Considerations
When designing nixie tube projects, keep in mind:
- The physical size of the tubes
- Power requirements and heat dissipation
- Potential electromagnetic interference from high-voltage circuits
- The need for current-limiting resistors for each cathode
The Future of Nixie Tubes
While nixie tubes will likely remain a niche interest, their unique charm ensures a dedicated following. As long as there are enthusiasts who appreciate the warm glow and retro aesthetics of these devices, nixie tubes will continue to find a place in custom projects and specialty applications.
Some potential future developments include:
Improved Power Efficiency
As energy efficiency becomes increasingly important, researchers and hobbyists are working on ways to reduce the power consumption of nixie tube circuits. This includes:
- More efficient high-voltage power supplies
- Pulsed operation to reduce average power consumption
- Use of modern microcontrollers for precise timing and control
Integration with Modern Technology
The combination of vintage nixie displays with cutting-edge technology creates interesting possibilities:
- Wi-Fi-enabled nixie clocks that automatically sync time
- Nixie tube displays controlled by smartphone apps
- Integration with home automation systems
New Manufacturing Techniques
While mass production of nixie tubes is unlikely to resume, advances in small-scale manufacturing could make custom or limited-run nixie tubes more accessible:
- 3D printing of tube bases and other components
- Small-batch production using updated manufacturing processes
- Development of "nixie-like" displays using modern materials and techniques
Nixie-Inspired Modern Displays
The aesthetic appeal of nixie tubes has inspired the development of modern displays that mimic their appearance:
- Edge-lit acrylic displays that simulate the look of nixie tubes
- OLED or LCD displays with nixie-like fonts and color schemes
- Projection systems that create three-dimensional, nixie-like digits
Conclusion: The Enduring Appeal of Nixie Tubes
Nixie tubes represent a fascinating intersection of physics, electronics, and design. Their unique operating principle creates a display that is both functional and aesthetically pleasing. While they may no longer be practical for mainstream use, nixie tubes continue to captivate hobbyists, artists, and technology enthusiasts.
The enduring appeal of nixie tubes lies not just in their functionality, but in the way they make the invisible visible – turning the abstract flow of electrons into a tangible, glowing display. In an age of sleek, flat screens, there's something magical about seeing actual physical digits light up inside a glass tube.
Nixie tubes remind us of the rapid pace of technological change while simultaneously demonstrating that some designs have a timeless quality. They serve as a bridge between the past and the present, allowing us to experience a piece of electronic history firsthand.
For the DIY enthusiast, working with nixie tubes offers a unique challenge, combining high-voltage electronics, vintage components, and modern control systems. It's an opportunity to gain hands-on experience with a technology that shaped the evolution of electronic displays.
In the broader context of design and technology, nixie tubes continue to inspire. Their influence can be seen in retro-futuristic aesthetics, steampunk creations, and even in the design of modern digital displays that seek to capture some of that nixie magic.
As we continue to push the boundaries of display technology, it's worth taking a moment to appreciate these glowing remnants of our technological past. Nixie tubes offer more than just a window into the history of electronic displays – they challenge us to consider how we can combine the best of old and new technologies, how we can create devices that are not just functional but also beautiful and engaging.
In the end, the story of nixie tubes is a reminder that technology is not just about progress and efficiency – it's also about creativity, aesthetics, and the human desire to create and interact with beautiful things. As long as there are people who appreciate the warm glow of a nixie tube, this remarkable technology will continue to illuminate our world, bridging the gap between past and future.
