Introduction: The Ubiquitous Spring
Springs are all around us, silently working in countless devices and mechanisms we use every day. From the click of a pen to the smooth ride of a car, springs play a crucial role in our modern world. But how exactly do these ingenious devices function? In this comprehensive exploration, we'll delve into the science behind springs, uncover their various types and applications, and peek into the future of spring technology.
The Fundamentals of Spring Science
What Is a Spring?
At its core, a spring is an elastic object designed to store mechanical energy. When a force is applied, a spring deforms, and when that force is removed, it returns to its original shape. This property of elasticity is what makes springs so versatile and useful in countless applications.
Springs can be crafted from various materials, with metals (especially steel alloys), plastics, and rubber being the most common. While the coiled metal spring might be the most recognizable form, springs come in many shapes and sizes, each tailored to specific uses.
The Physics Behind the Bounce: Hooke's Law
To truly understand how springs work, we need to dive into some fundamental physics. The behavior of springs is governed by Hooke's Law, named after the 17th-century English scientist Robert Hooke. This law states that the force required to extend or compress a spring is directly proportional to the distance of extension or compression.
Mathematically, Hooke's Law is expressed as:
F = kx
Where:
- F is the force
- k is the spring constant (a measure of the spring's stiffness)
- x is the displacement from the spring's equilibrium position
This simple equation is the foundation for understanding spring behavior and is used extensively in engineering and physics.
Elastic Potential Energy: The Spring's Secret Weapon
When you stretch or compress a spring, you're doing work against its internal forces. This work doesn't disappear; instead, it's stored in the spring as elastic potential energy. The amount of energy stored is given by the equation:
E = ½kx²
This stored energy is what allows springs to do work when they return to their original shape. It's this ability to store and release energy that makes springs so useful in applications ranging from timekeeping to shock absorption.
The Microscopic View: Springs at the Atomic Level
To truly appreciate how springs work, we need to zoom in to the atomic scale. The elasticity of springs comes from the bonds between atoms in the material. When you stretch a spring, you're essentially pulling these atoms slightly farther apart. The electromagnetic forces between the atoms resist this separation, creating the restoring force that pulls the spring back to its original shape.
In metals, which are commonly used for springs, the atoms are arranged in a crystal lattice. The elasticity comes from slight distortions in this lattice structure. When the spring is stretched, these atomic bonds are strained but not broken. As long as the spring is not stretched beyond its elastic limit, these bonds will pull the atoms back to their original positions when the force is removed.
The Diversity of Springs: Types and Applications
Springs come in a remarkable variety of forms, each designed for specific applications. Let's explore some of the most common types:

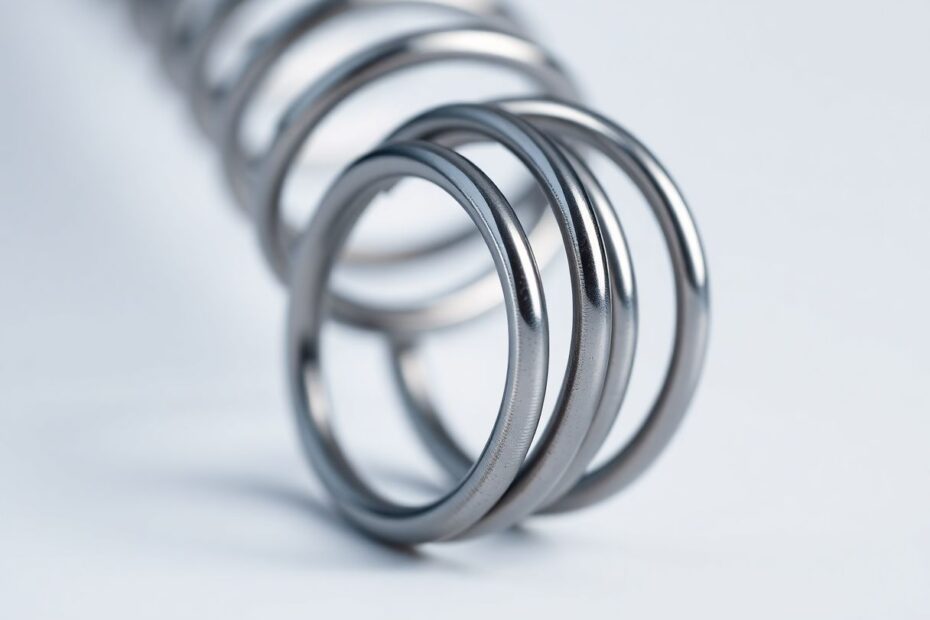

Coil Springs: The Classic Design
Coil springs, also known as helical springs, are the most recognizable type. They consist of a wire wound into a helix and are used in everything from mattresses to car suspensions. Coil springs can be designed to resist compression, tension, or both.
Leaf Springs: The Automotive Workhorse
Leaf springs are made from several layers of metal strips and are commonly used in vehicle suspensions, especially in trucks and heavy-duty vehicles. They provide a smooth ride while supporting heavy loads.
Torsion Springs: The Twisting Force
Torsion springs work by twisting, storing energy through angular deflection. They're often found in clothespins, garage doors, and many other mechanisms where a rotational force is needed.
Gas Springs: Pneumatic Power
Gas springs use compressed gas to provide a spring force. They're often seen in office chairs, car trunks, and other applications where a smooth, controlled motion is desired.
Belleville Springs: The Disc-Shaped Wonder
Belleville springs are disc-shaped springs that can be stacked for different force characteristics. They're used in applications requiring high loads in a small space, such as in valve assemblies.
Constant Force Springs: Steady and Reliable
These unique springs provide a nearly constant force over a range of extension. They're useful in counterbalances, such as in retractable cords or windows.
The Art and Science of Spring Manufacturing
Creating a spring involves a meticulous process that combines materials science, engineering, and precision manufacturing. Let's walk through the key steps:
Material Selection: The choice of material is crucial and depends on the spring's intended use. High-carbon steel is widely used due to its strength and cost-effectiveness. For corrosion resistance, stainless steel is preferred. Other materials like phosphor bronze, Inconel, and titanium are used for specific applications.
Wire Forming: The chosen metal is drawn into a wire of the correct diameter. This process involves pulling the metal through progressively smaller dies to achieve the desired thickness.
Coiling: The wire is wound around a mandrel to create the spring shape. This can be done hot or cold, depending on the material and desired properties.
Heat Treatment: Many springs undergo heat treatment to enhance their properties. This process can increase strength, reduce internal stresses, and improve elasticity.
Grinding: The ends of the spring are often ground flat to ensure proper contact with adjacent components.
Testing: Finally, the spring undergoes rigorous testing to verify that it meets required specifications for force, deflection, and durability.
Springs in Action: Real-World Applications
The versatility of springs is evident in their widespread use across various industries:
Automotive Industry
Springs are critical components in vehicles. They're used in suspension systems to absorb shocks and provide a smooth ride. Engine valve springs ensure precise timing in internal combustion engines. Door hinges, seat mechanisms, and even the fuel injection system rely on springs.
Electronics
In the world of electronics, springs play a crucial role in switches, relays, and connectors. They provide the necessary contact force and ensure reliable electrical connections.
Aerospace
The aerospace industry uses springs in landing gear, control systems, and various mechanisms. The extreme conditions in aviation require springs with exceptional reliability and performance.
Consumer Goods
From the click mechanism in pens to the bounciness of trampolines, springs are ubiquitous in consumer products. They're found in toys, appliances, furniture, and countless other everyday items.
Industrial Machinery
In industrial settings, springs are used in various mechanisms and controls. They're essential in valves, actuators, and many types of manufacturing equipment.
The Physics of Spring Deformation: Understanding Limits
When a spring is stretched or compressed, it undergoes several stages of deformation. Understanding these stages is crucial for proper spring design and use:
Elastic Deformation: This is the normal operating range of a spring. When force is applied, the spring deforms, but it returns to its original shape when the force is removed. This behavior is described by Hooke's Law.
Plastic Deformation: If a spring is stretched beyond its elastic limit, it enters plastic deformation. At this point, the spring won't fully return to its original shape when the force is removed. This results in permanent deformation and can compromise the spring's function.
Ultimate Failure: If stretched too far, the spring will eventually break. This point of failure depends on the material properties and the spring's design.
Engineers must carefully consider these limits when designing springs to ensure they operate safely within their elastic range throughout their intended lifespan.
Spring Design: A Balancing Act
Designing an effective spring involves balancing several factors:
Material Properties: The choice of material affects the spring's strength, elasticity, corrosion resistance, and performance under different temperatures.
Geometry: The shape, size, and wire diameter of the spring all play crucial roles in its performance.
Operating Conditions: Designers must consider the environment in which the spring will function, including temperature ranges, exposure to corrosive substances, and cyclic loading patterns.
Performance Requirements: The spring must meet specific force and deflection requirements while maintaining a long fatigue life.
Modern spring design often involves the use of specialized software and finite element analysis to optimize these factors and predict spring performance under various conditions.
Cutting-Edge Spring Technologies
As technology advances, so do spring designs. Some exciting developments in spring technology include:
Shape Memory Alloy Springs
These innovative springs are made from materials that "remember" their original shape when heated. They can be deformed at low temperatures and then return to their original shape when heated, offering unique possibilities in various applications.
Magnetic Springs
Some advanced designs use magnetic repulsion instead of mechanical deformation to create spring-like behavior. These can offer advantages in certain applications, such as reduced wear and the ability to adjust spring characteristics electronically.
Composite Springs
Advanced composite materials are being used to create springs with improved performance characteristics, such as higher strength-to-weight ratios or better corrosion resistance.
Springs as Energy Storage Devices
Springs play a fascinating role in energy storage systems, particularly in mechanical watches and some renewable energy applications.
The Timekeeping Spring: Powering Mechanical Watches
In a mechanical watch, a mainspring stores energy when wound. This energy is then released slowly through a series of gears to power the watch's movement. The precision of this energy release, controlled by the balance wheel and escapement, is what allows mechanical watches to keep time accurately.
Springs in Renewable Energy
Some innovative renewable energy systems use large-scale springs to store energy. For example, gravity batteries use heavy weights and springs to store potential energy, which can be converted back to electricity when needed. This approach offers a mechanical alternative to chemical batteries for energy storage.
Nature's Springs: Biomimicry in Action
While we often think of springs as human-made devices, nature has its own remarkable versions:
Animal Tendons: Many animal tendons act like springs, storing and releasing energy during movement. This is particularly evident in the legs of animals like kangaroos, allowing them to move efficiently.
Plant Stems: Many plants use spring-like mechanisms for seed dispersal. The tension in a plant's stem can catapult seeds impressive distances.
Spider Silk: This amazing natural material exhibits remarkable elasticity, functioning like a tiny spring. It allows spider webs to absorb the impact of flying insects without breaking.
Understanding these natural springs has inspired biomimetic designs in engineering, leading to innovations in materials and mechanisms.
The Future of Spring Technology
As we look to the future, spring technology continues to evolve in exciting ways:
Nanotechnology and Micro-Springs
The development of nano-scale springs for use in microelectromechanical systems (MEMS) is an area of active research. These tiny springs could revolutionize various fields, from medical devices to advanced sensors.
Smart Materials and Adaptive Springs
Research is ongoing into springs that can adapt their properties based on environmental conditions. These smart springs could change their stiffness or damping characteristics in response to temperature, stress, or electronic signals.
Sustainable Materials
As environmental concerns grow, there's increasing research into eco-friendly spring materials. This includes exploring biodegradable options for disposable products and developing springs from recycled or renewable materials.
Integration with IoT and Smart Systems
The integration of springs with sensors and IoT (Internet of Things) technology could lead to springs that can report on their condition, predict failure, or adjust their properties in real-time based on data analysis.
Conclusion: The Enduring Elegance of Springs
Springs, in their various forms, are a testament to the ingenuity of human engineering. From the simple coil springs in a pen to complex suspension systems in vehicles, these devices play a crucial role in countless technologies we rely on daily. Understanding how springs work not only satisfies our curiosity but also opens doors to new innovations and improvements in various fields of engineering and design.
As we continue to push the boundaries of technology, springs will undoubtedly evolve, finding new applications and forms. Their fundamental principle of elasticity, however, will remain a cornerstone of mechanical design, reminding us of the elegant simplicity that often underlies complex systems.
Whether you're an engineer designing the next groundbreaking device or simply a curious individual, appreciating the science behind springs offers a fascinating glimpse into the principles that shape our physical world. The next time you encounter a spring in action, take a moment to marvel at this unsung hero of the mechanical world – a simple yet profound embodiment of the laws of physics that govern our universe.
