Fire extinguishers are ubiquitous safety devices found in homes, offices, and public spaces worldwide. While their presence is familiar, the intricate science and engineering that make these life-saving tools function are often overlooked. This article delves deep into the mechanics, chemistry, and physics behind fire extinguishers, exploring how they work to combat one of humanity's oldest threats: uncontrolled fire.
Understanding the Nature of Fire
To comprehend how fire extinguishers function, we must first understand the nature of fire itself. Fire is not a substance but a chemical reaction known as combustion. This process requires three essential elements, often referred to as the "fire triangle":
The Fire Triangle
- Fuel: Any combustible material (e.g., wood, paper, gasoline)
- Oxygen: Typically from the surrounding air
- Heat: Sufficient to initiate and sustain the chemical reaction
Fire extinguishers are designed to disrupt one or more of these elements, effectively "breaking" the fire triangle and extinguishing the flames.
The Science of Fire Suppression
Fire extinguishers employ various methods to combat fires, each targeting different aspects of the fire triangle:
Heat Removal
Water-based extinguishers primarily work by absorbing heat from the fire. Water has a high specific heat capacity of 4.186 J/g°C, allowing it to absorb significant thermal energy. As the water evaporates, it further absorbs heat through the latent heat of vaporization, which is approximately 2,260 kJ/kg for water at 100°C. This two-fold cooling effect rapidly reduces the fire's temperature below its ignition point.
Oxygen Depletion
Carbon dioxide (CO2) extinguishers work by displacing oxygen around the fire. CO2 is 1.5 times denser than air, allowing it to create a "blanket" that separates the fuel from atmospheric oxygen. The rapid expansion of liquid CO2 to gas also creates a localized drop in temperature, further aiding in fire suppression.
Chemical Reaction Interruption
Dry powder extinguishers, often containing monoammonium phosphate or sodium bicarbonate, work by interfering with the chemical reactions occurring in the flame. These powders decompose under heat, releasing free radicals that combine with those produced by the fire, effectively terminating the chain reaction of combustion.
Types of Fire Extinguishers and Their Mechanisms
Water Extinguishers
Water extinguishers are pressurized with nitrogen to about 150 psi (1,034 kPa). When activated, this pressure forces water through a siphon tube and out of the nozzle at high velocity. The stream can reach distances of 30-40 feet (9-12 meters), allowing for safe operation from a distance.
Dry Chemical Extinguishers
These extinguishers use nitrogen pressurized to approximately 195 psi (1,344 kPa) to propel fine powder. The powder particles, typically 10-75 micrometers in diameter, create a large surface area for interaction with the fire. Some formulations also include silicone additives to improve flow characteristics and reduce clumping.
Foam Extinguishers
Foam extinguishers contain a mixture of water and foam concentrate, typically in a 97:3 ratio. When discharged, this solution passes through a specialized nozzle that aerates the mixture, creating a foam with an expansion ratio of about 10:1. This foam forms a persistent blanket over liquid fuel fires, preventing re-ignition.
Carbon Dioxide Extinguishers
CO2 extinguishers contain liquid carbon dioxide under high pressure, typically around 850-1000 psi (5,860-6,895 kPa) at room temperature. When released, the rapid expansion of CO2 from liquid to gas creates a temperature drop to about -78°C (-108°F), forming the characteristic white "snow" cloud.

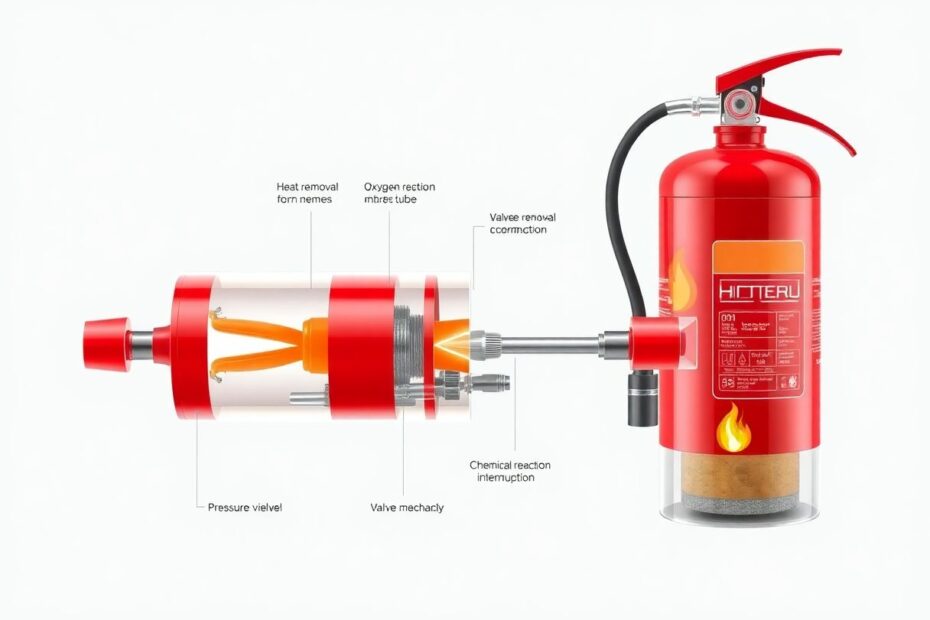

The Engineering Behind Fire Extinguishers
The design of fire extinguishers involves sophisticated engineering to ensure reliability, safety, and effectiveness:
Pressure Vessel Design
Extinguisher cylinders are typically made from aluminum alloys or steel, designed to withstand internal pressures of up to 1.5 times their normal operating pressure. They undergo hydrostatic testing every 5-12 years, depending on the type, to ensure structural integrity.
Valve Mechanisms
Modern fire extinguishers use a squeeze-grip activation mechanism. This design incorporates a spring-loaded valve that remains sealed by a safety pin. When the pin is removed and the handle squeezed, it depresses a plunger, opening the valve and allowing the pressurized contents to flow.
Siphon Tubes and Nozzles
The siphon tube extends from the valve to near the bottom of the cylinder, ensuring that the extinguishing agent is fully expelled. Nozzles are engineered to optimize the discharge pattern for different agents. For example, CO2 extinguishers use a diffuser horn to expand the liquid CO2 into a gas efficiently.
Advancements in Fire Extinguisher Technology
Recent years have seen significant innovations in fire extinguisher technology:
Clean Agent Extinguishers
These use gases like heptafluoropropane (FM-200) or Novec 1230, which are electrically non-conductive and leave no residue. They work by absorbing heat and interrupting the chemical reactions in the flame. These agents have a Global Warming Potential (GWP) significantly lower than older halon-based systems.
Condensed Aerosol Extinguishers
A relatively new technology, these devices use a solid compound that, when activated, creates a fine potassium-based aerosol. This aerosol interferes with the chemical reactions of combustion at the molecular level, making it highly effective against a wide range of fire types.
Smart Fire Extinguishers
Incorporating IoT technology, these devices can monitor their own pressure and location, sending alerts if they are moved or discharged. Some models can even detect fires and automatically notify building management or fire departments.
Proper Use and Maintenance
Understanding the PASS technique (Pull, Aim, Squeeze, Sweep) is crucial for effective fire extinguisher use. Regular maintenance is equally important:
- Monthly visual inspections to check pressure gauges and physical condition
- Annual professional inspections to check internal components and pressure
- Hydrostatic testing every 5-12 years, depending on the extinguisher type
- Recharge or replacement after any use, even if partially discharged
Environmental and Safety Considerations
While essential for safety, some fire extinguishing agents have environmental implications. Halons, once common, were phased out due to their ozone-depleting properties. Modern alternatives like FM-200 and Novec 1230 have been developed to provide effective fire suppression with minimal environmental impact.
Safety considerations also extend to the potential health effects of extinguishing agents. For instance, while CO2 is non-toxic, it can cause asphyxiation in high concentrations. Dry chemical powders, while generally safe, can cause respiratory irritation if inhaled in large quantities.
Conclusion: The Continuing Evolution of Fire Safety
Fire extinguishers represent a fascinating intersection of chemistry, physics, and engineering. From the basic principles of the fire triangle to the advanced materials and mechanisms in modern extinguishers, these devices embody decades of scientific research and technological innovation.
As our understanding of fire behavior advances and new materials are developed, fire extinguisher technology continues to evolve. Future developments may include more environmentally friendly agents, improved activation mechanisms, and better integration with smart building systems.
Despite these advancements, the fundamental purpose of fire extinguishers remains unchanged: to provide a critical first line of defense against fire, protecting lives and property in those crucial initial moments of a fire incident. As we continue to push the boundaries of fire safety technology, the humble fire extinguisher stands as a testament to human ingenuity in the face of one of nature's most powerful forces.
