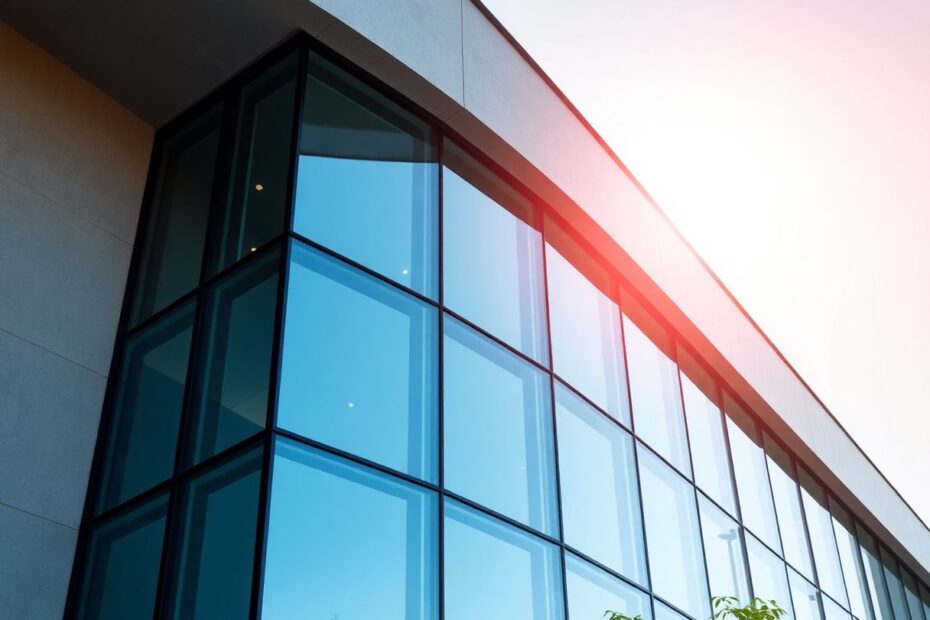

Have you ever marveled at how some buildings stay cool even on scorching summer days, or wondered why certain homes feel so cozy during frigid winters? The secret often lies in an innovative technology called heat reflective glass, also known as low-emissivity (low-E) windows. This remarkable invention is revolutionizing home comfort and energy conservation. Let's dive deep into the fascinating world of heat reflective windows and explore how they work their magic.
Understanding the Fundamentals: Light, Heat, and Energy
To grasp the brilliance of heat reflective glass, we first need to understand the basics of light and heat. Both are forms of energy, traveling through space as electromagnetic radiation. Sunlight, our primary source of natural light and heat, is a complex mixture of different types of this radiation. The visible spectrum – the rainbow of colors we can see – is just a small part of this electromagnetic smorgasbord.
On either side of the visible spectrum lie two crucial players in our story: ultraviolet (UV) light, with shorter wavelengths than visible light, and infrared (IR) light, with longer wavelengths. While UV light is known for its ability to cause sunburns and fade materials, IR light is what we experience as heat. Understanding this spectrum is key to appreciating how heat reflective glass operates.
The Composition of Sunlight: More Than Meets the Eye
When sunlight reaches Earth's surface, it's composed of approximately 44% visible light, 53% infrared radiation, and 3% ultraviolet radiation. This breakdown helps explain why traditional windows, while excellent for illumination, can also allow significant heat transfer. They're essentially letting in a whole lot of invisible heat along with the visible light we desire.
Heat Reflective Glass: A Technological Marvel
Heat reflective glass, or low-E glass, is a sophisticated window technology designed to selectively filter the different components of sunlight. Its primary goal is to minimize the amount of ultraviolet and infrared light passing through while still allowing visible light to enter unimpeded. This selective transmission is achieved through a carefully engineered structure:
Double-paned windows: Two panes of glass are separated by a space, typically filled with an inert gas like argon. This gas-filled space acts as an insulating layer, reducing heat transfer through conduction and convection.
Microscopically thin metallic coating: One of the interior surfaces of the glass is coated with an incredibly thin layer of metal oxides. This coating, often made from materials like silver, titanium dioxide, or zinc oxide, is the real workhorse of the system.
Strategic placement: The coating is usually applied to the outer surface of the inner pane in double-glazed windows. This positioning protects the delicate coating while maximizing its effectiveness.
The Art of Manufacturing Heat Reflective Glass
The production of heat reflective glass involves two primary methods, each with its own set of advantages:
Sputtering: This high-tech process creates "soft-coated" glass. In a vacuum chamber, an electric charge is used to vaporize metals, which then condense on the glass surface in an incredibly thin, even layer. This method allows for precise control over the coating's composition and thickness, resulting in excellent performance. However, the coating is relatively delicate and must be protected within a sealed glass unit.
Pyrolytic coating: This method produces "hard-coated" glass. The glass is heated to near its melting point, and chemical vapors are sprayed onto its surface. The extreme heat causes the chemicals to bond directly with the glass, creating a more durable coating. While slightly less effective than soft coatings, pyrolytic coatings can be exposed to the air and are often used in single-pane applications.
The Science of Reflection: How Low-E Glass Works Its Magic
The true genius of heat reflective glass lies in its ability to selectively interact with different wavelengths of light. Here's how it manages this feat:
Visible Light Transmission: The metallic coating is engineered to be virtually transparent to visible light. This ensures that rooms remain well-lit and views are preserved, maintaining the primary function of windows.
Infrared Reflection: The coating acts like a mirror for infrared radiation. In summer, it reflects the sun's heat back outside, preventing it from entering the building. In winter, it reflects interior heat back into the room, reducing heat loss through the windows.
Ultraviolet Blocking: The coating also helps block a significant portion of harmful UV rays. This not only protects occupants from excessive UV exposure but also prevents fading and degradation of furniture, fabrics, and artwork.
Summer Performance: Keeping Your Cool
On a sweltering summer day, heat reflective glass works tirelessly to maintain a comfortable indoor environment:
- Visible sunlight enters the room normally, providing natural illumination.
- A large portion of the infrared radiation (heat) is reflected back outside by the low-E coating.
- This significantly reduces the amount of solar heat gain in the building.
- With less heat entering, there's a reduced need for air conditioning, leading to energy savings and improved comfort.
Recent studies have shown that properly implemented low-E windows can reduce cooling costs by up to 25-30% in hot climates. This is a substantial saving, considering that cooling often accounts for the largest portion of residential energy use in warm regions.
Winter Performance: Cozy and Efficient
During cold winter nights, heat reflective glass shifts its role to become a heat-retaining barrier:
- Interior heat from heaters, fireplaces, and other sources radiates towards the windows.
- The low-E coating reflects a significant portion of this heat back into the room.
- This reflection dramatically reduces heat loss through the windows, which are typically the weakest point in a building's thermal envelope.
- The result is more efficient heating and lower energy bills, with some studies showing heating cost reductions of 10-20% in cold climates.
Measuring Effectiveness: The Numbers Behind the Magic
To truly understand and compare the performance of heat reflective windows, several key metrics are used in the industry:
U-factor: This measures the rate of heat transfer through the window. Lower U-factors indicate better insulating properties. While a single-pane window might have a U-factor around 1.1 W/m²·K, a high-quality double-pane low-E window can achieve U-factors as low as 0.3 W/m²·K.
R-value: The inverse of the U-factor, R-value measures insulation effectiveness. Higher R-values indicate better insulation. A typical double-pane low-E window might have an R-value between 3 and 4, compared to just 1 for a single-pane window.
Solar Heat Gain Coefficient (SHGC): This measures the fraction of solar radiation admitted through a window. Lower SHGC values are better for reducing cooling loads. Advanced low-E coatings can achieve SHGC values as low as 0.25, meaning only 25% of the solar heat is transmitted.
Visible Transmittance (VT): This metric indicates how much visible light passes through the window, ranging from 0 to 1. High-quality low-E glass can maintain VT values above 0.70, ensuring plenty of natural light.
Light to Solar Gain (LSG): This ratio compares visible light transmission to solar heat gain. Higher LSG values indicate a window that provides good light while minimizing heat gain. The best low-E windows can achieve LSG ratios above 2.0.
Beyond Basic Low-E: Cutting-Edge Developments
As technology progresses, new variations of heat reflective glass are pushing the boundaries of what's possible:
Spectrally Selective Coatings: These advanced coatings use nanotechnology to more precisely target specific wavelengths of light. By fine-tuning the coating's structure at the atomic level, manufacturers can maximize heat reflection while minimizing the impact on visible light transmission. Some of these coatings can reflect up to 97% of infrared radiation while still allowing over 70% of visible light through.
Dynamic Glazing: This exciting technology allows windows to change their properties based on external conditions or user preferences. Electrochromic windows use a small electric current to alter the tint of the glass, while thermochromic windows respond directly to temperature changes. These smart windows can optimize energy performance throughout the day and seasons, potentially doubling the energy savings compared to static low-E windows.
Vacuum Insulated Glazing (VIG): This cutting-edge technology replaces the gas-filled space in traditional double-pane windows with a vacuum. By eliminating conduction and convection between the panes, VIG units can achieve insulation values rivaling those of solid walls, with U-factors as low as 0.1 W/m²·K.
The Future of Heat Reflective Technology
As we look to the future, several exciting developments are on the horizon:
Smart Windows: Integration with home automation systems will allow windows to adjust their properties based on real-time weather data, occupancy patterns, and energy prices. Machine learning algorithms could optimize window performance for both comfort and energy efficiency.
Improved Coatings: Research into new materials, such as perovskites and metal-organic frameworks, promises even more effective and durable heat reflection. These materials could potentially double the energy savings of current low-E coatings.
Self-Cleaning Properties: Some manufacturers are working on combining heat reflection with hydrophobic and photocatalytic coatings. These windows would not only manage heat but also repel dirt and break down organic contaminants, reducing maintenance needs.
Energy Generation: Transparent solar cells integrated into window glass could turn windows into power generators. While currently less efficient than traditional solar panels, this technology could significantly contribute to a building's energy needs without compromising views or aesthetics.
Conclusion: A Clear View of an Energy-Efficient Future
Heat reflective glass represents a remarkable fusion of materials science, physics, and practical engineering. By harnessing our understanding of light and heat at the molecular level, we've created windows that actively contribute to a building's energy performance. These intelligent barriers not only enhance comfort but also play a crucial role in reducing our collective carbon footprint.
As we continue to face challenges related to energy consumption and climate change, technologies like low-E glass will become increasingly important. They demonstrate how scientific innovation can provide elegant solutions to complex problems, making our buildings more sustainable without sacrificing functionality or beauty.
The next time you enjoy a comfortably cool room on a scorching day or feel cozy despite the winter chill outside, take a moment to appreciate the invisible technology working hard in your windows. Heat reflective glass is a shining example of how understanding and manipulating the fundamental properties of light and heat can lead to transformative solutions in our built environment. It's a clear case of science making our world a little bit better, one window at a time.
